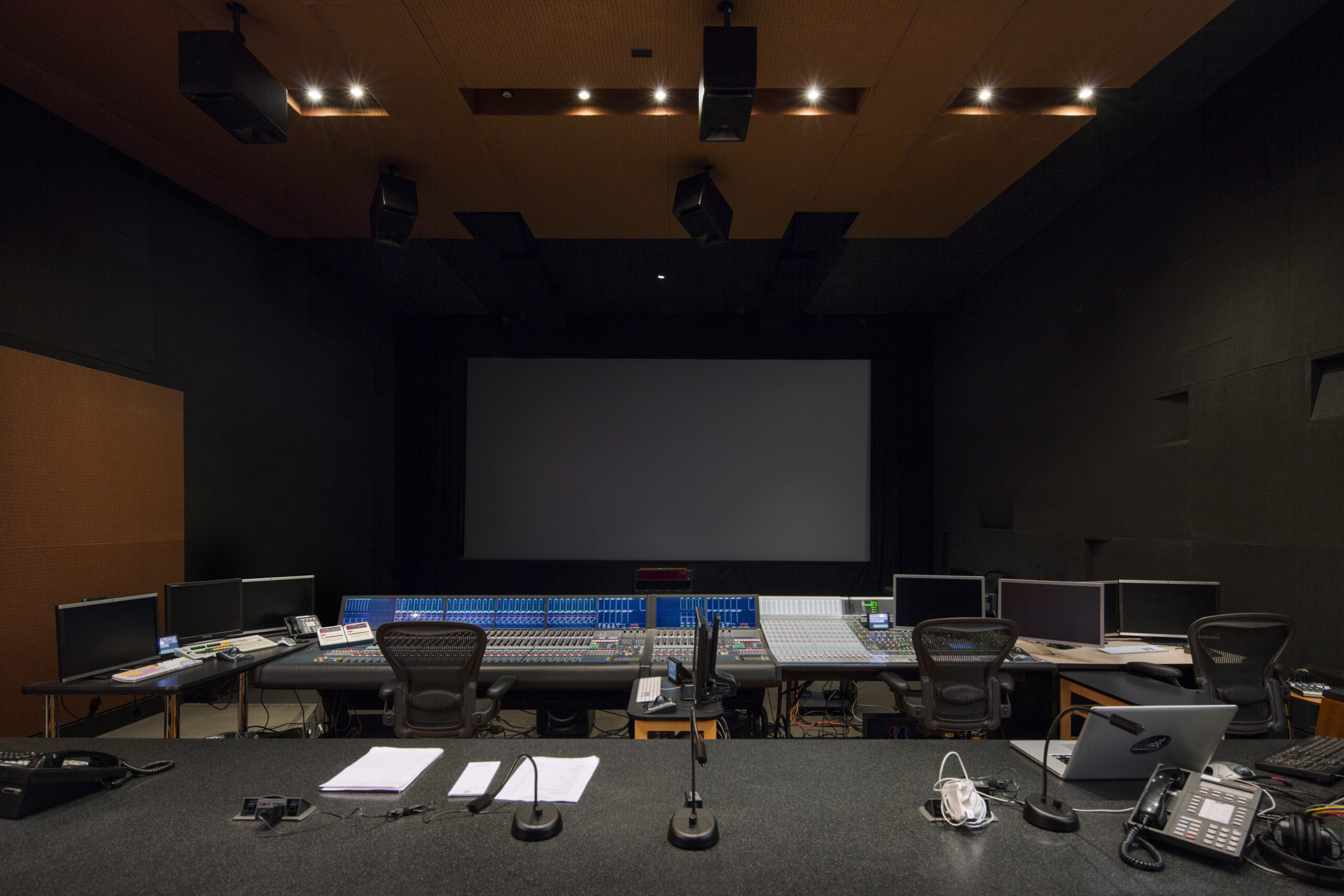

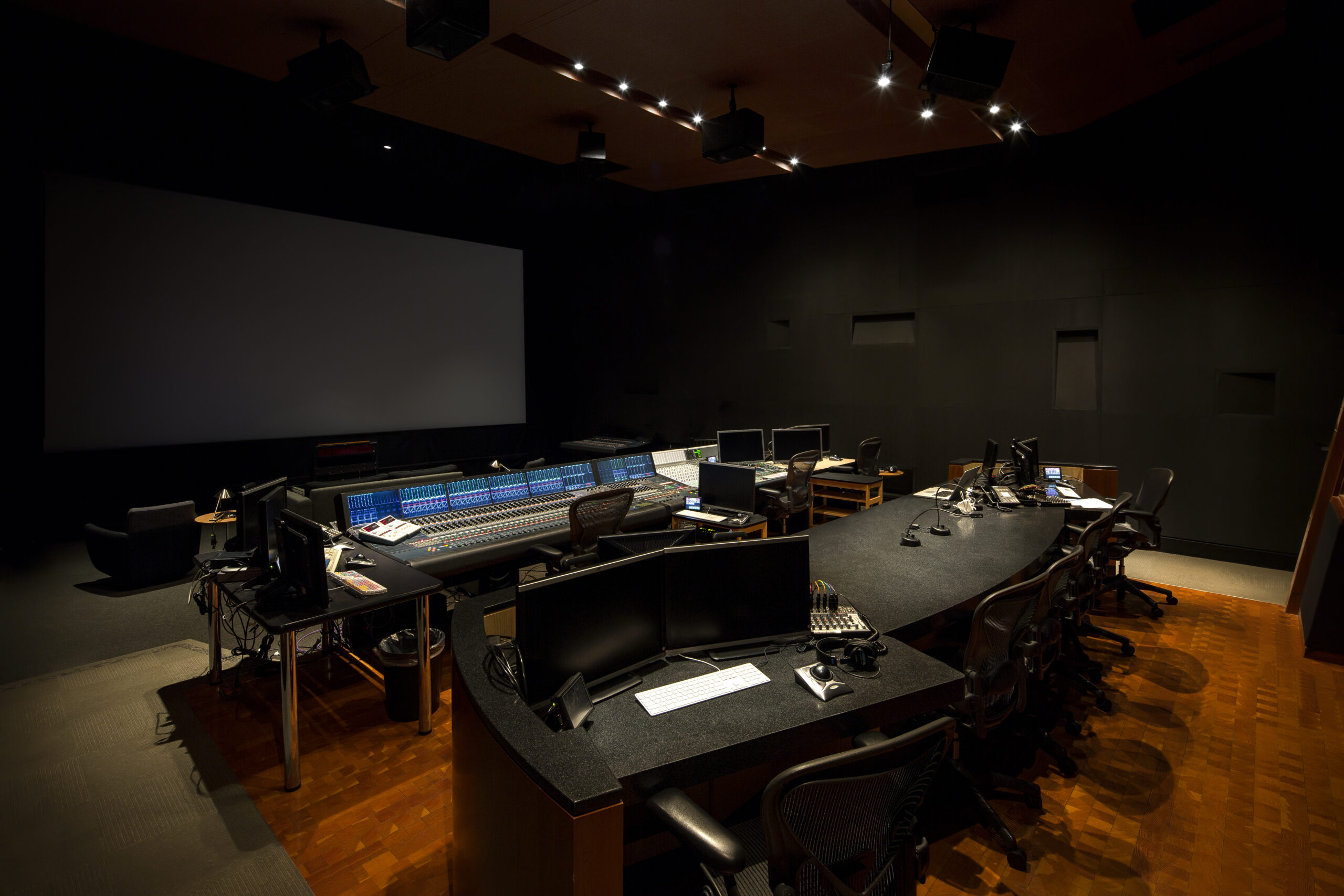

OVERVIEW​

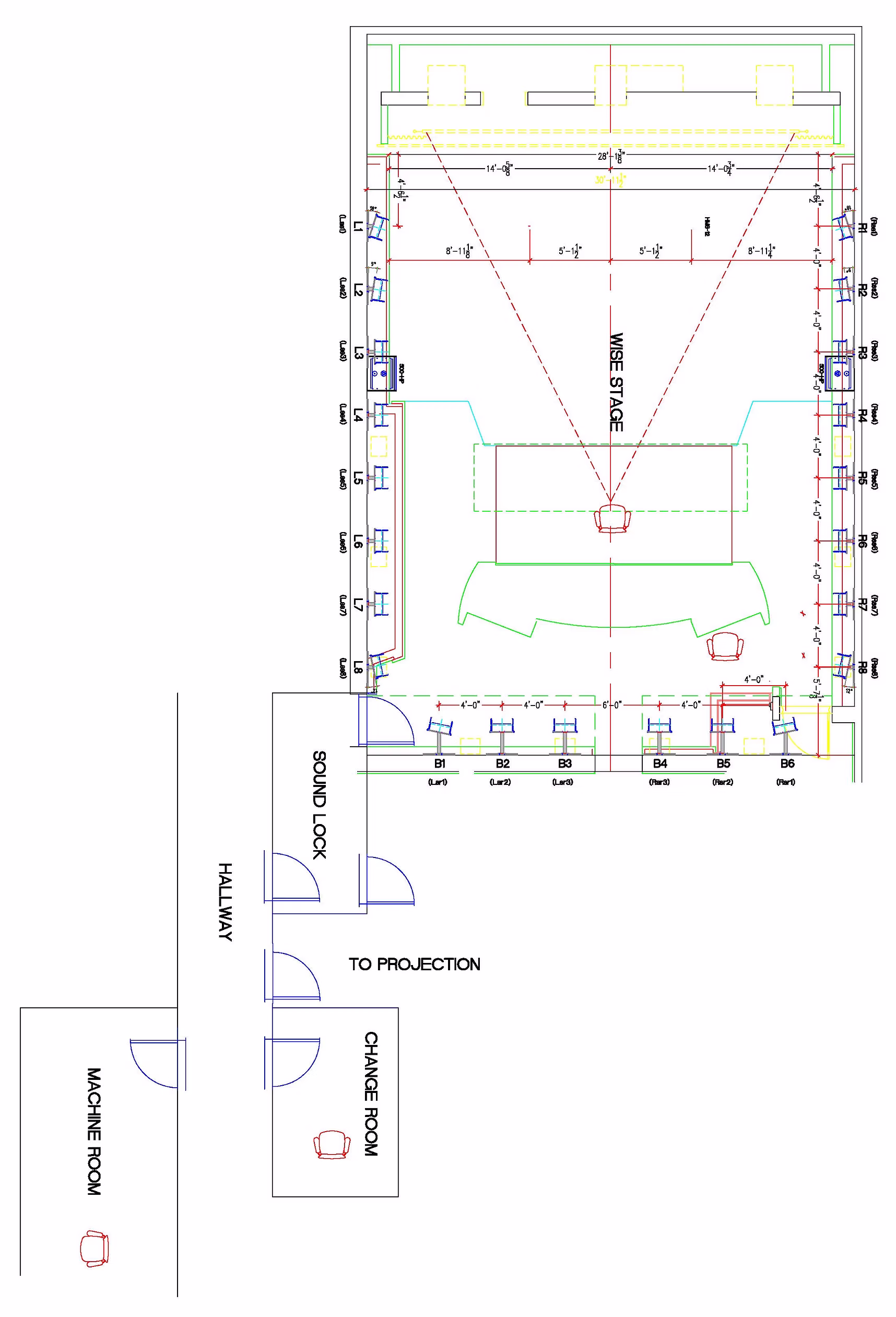

Stage Size (approximate)

• 40’ long x 28’ wide x 16’ high

Screen Dimensions

• 13’ 8” x 24’ 7”

Monitoring Formats

• 5.1, 7.1, & Dolby Atmos - Cinema and Home Theater

B-Chain Specifications

• 3-Way High Powered Screen Arrays with BMS Coaxial Compression Drivers, BGW M2200i Subwoofers, 38 x Meyer HMS-12 High-Power Surrounds, Meyer 500-HP Dolby Atmos Subwoofers, Dolby Lake Processors, Parasound & Crown Amplification. [Atmos Home Theater 13 x JBL 708i Speakers, 1 x JBL LSR4312SP Subwoofer, 2 x Crown 8-600N Amps]

Digital Mixing Console

• AMS-Neve DFC-3D Gemini, Encore 3 Automation System, 1000 path Dual Engine Ultra Scale Processing Core, 12 Stems, 64 Fader Control Surface with LED TFT Displays.

• Avid S6 M40-Fader 9-Knob control surface. Custom configurations and accessories including Master Post Module, Joystick Module, Expand Knob Module, and Master Display Meters.

Pro Tools Playback

• 5 x Pro Tools v2020 HDX Systems, w/7,1 2019 MacPros ,576 Total Output Channels.

Pro Tools Record

• 2 x Pro Tools v2020 HDX Systems, w/7,1 2019 MacPros, 256 Total I/O Channels.

Pro Tools Plugin System

• Extensive list of current plug-ins such as: Altiverb 7XL, Speakerphone 2, Izotope RX5 Advanced, Waves Diamond, Fab Filter, Waves WNS, Zynaptiq Unfilter and others.

Outboard Gear

• Lexicon 960, TC 6000, Lexicon 480’s, Cedar DNS1000, Junger B42 Dynamics, DBX 120a Subharmonic Synthesizers.

Projector

• Christie CP2000-XB 2K Digital Cinema Projector.

Video Playback

• Rhode & Schwarz Clipster-Play Digital Cinema Delivery System. Supports 2K Stereoscopic playback of DPX, DNxHD, and others. SpycerBox Ultra 28.8 TB Secure Storage Area Network.

• AJA Kona 4 Video Card for ProTools playback.

Stagetec Nexus Audio Router

• 4096 x 4096 I/O Matrix, Matrix 5 Control, Audio Mixing DSP, High Speed Fiber Infrastructure.

Audio Storage Area Network

• ZFS based Enterprise Secure High Speed Storage, 48 TB capacity via 10GbE  connectivity.

• Apple XSAN Server for Editorial AFP 12 TB Shares.

Stage Editorial Workstations

• 4 Editorial Workstations with Dual Displays. Thinklogical VX80 KVM Router with individual Touch Screen Control providing Pro Tools CPU access with mouse sharing.

Editorial Rooms

• 2 Private, 1 Semi-private with 2 Workstations, all with audio, video, fiber and KVM Tie Lines to Stage.
